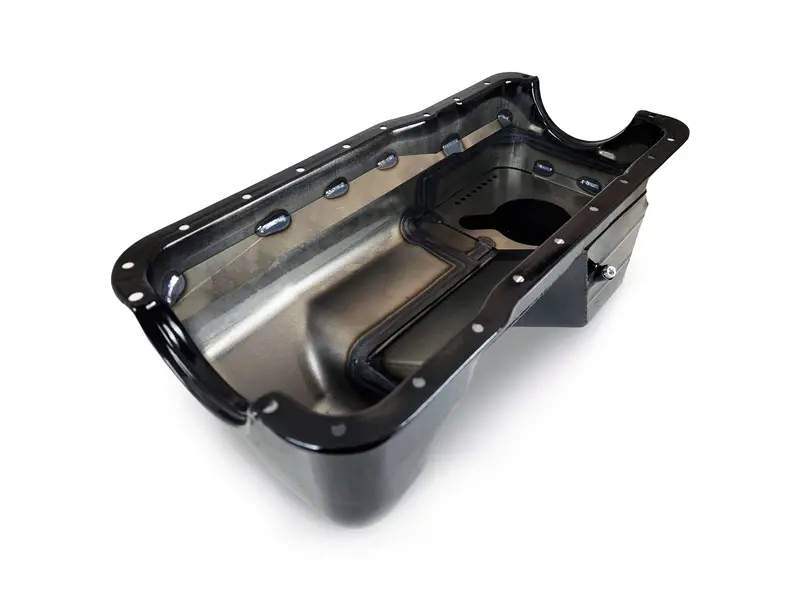

Canton Rear-Sump Oil Pan For Ford 351W – Fits 1966–1977 Bronco, Black Powder-Coated

Description

This deep sump oil pan for 351W Fords is designed for 1966-1977 Broncos. It has an 10″ deep sump for increased oil control and capacity and provides a 7 quart system capacity. This pan requires our 16-671 pickup.

• 7 qt System Capacity
• Crank Scraper
• Slosh Baffle
• Provision For Our Pan Mounted Dipstick
• Two Magnetic Drain Plugs
• Gloss Black Powder Coat Finish
• Proper mid pan indentation for front differential clearance
• More oil pump clearance then other Bronco replacement pans, clears standard and high volume pumps.
• Not for use with the stock passing behind the oil pan exhausts.

Attributes:

• Brand Name: Canton
• GTIN: 00887753714169
• Baffled: Yes
• Capacity: 7 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Feature 1: 7 qt System Capacity
• Feature 2: Crank Scraper
• Feature 3: Slosh Baffle
• Feature 4: Provision For Our Pan Mounted Dipstick
• Feature 5: Two Magnetic Drain Plugs
• Feature 6: Gloss Black Powder Coat Finish
• Finish: Black Gloss Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: Steel
• Pickup Included: No
• Recommended Accessory 1: 16-671 – Pickup For 351W Rear Sump 16-670 Bronce Pan
• Recommended Accessory 2: 20-953 – Main Cap Pickup Stud
• Recommended Accessory 3: 20-850 – Universal Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 4: 20-854 – Universal Steel Braided Dipstick Kit 1/4″ N.P.T. Fitting
• Recommended Accessory 5: 88-652 – Small Block Ford 351W One Piece Oil Pan Gasket
• Stoke: 4.0 inches
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 13.25 x 10.25 inches
• Weight: 14.85 POUNDS
